ST186 - WiFi Search Analyzer

ST186 - WiFi Search Analyzer
  • Access point list creation as well as the list of the clients of 802.11 a/b/g/n/ac/k/ standards in real time and in accumulation mode with further analysis;
  • Detection of Access point and connected devices location
Main element is the receiving module ST186RM.

ST186RМ provides:

  • Detection and analysis of radio signals in Wi Fi 802.11 a/b/g/n/ac/k/ frequency ranges.
  • Creation of the WiFi network with fixed IP adress
  • Data transfer, in a form of the web page, to any device with Wi Fi connection

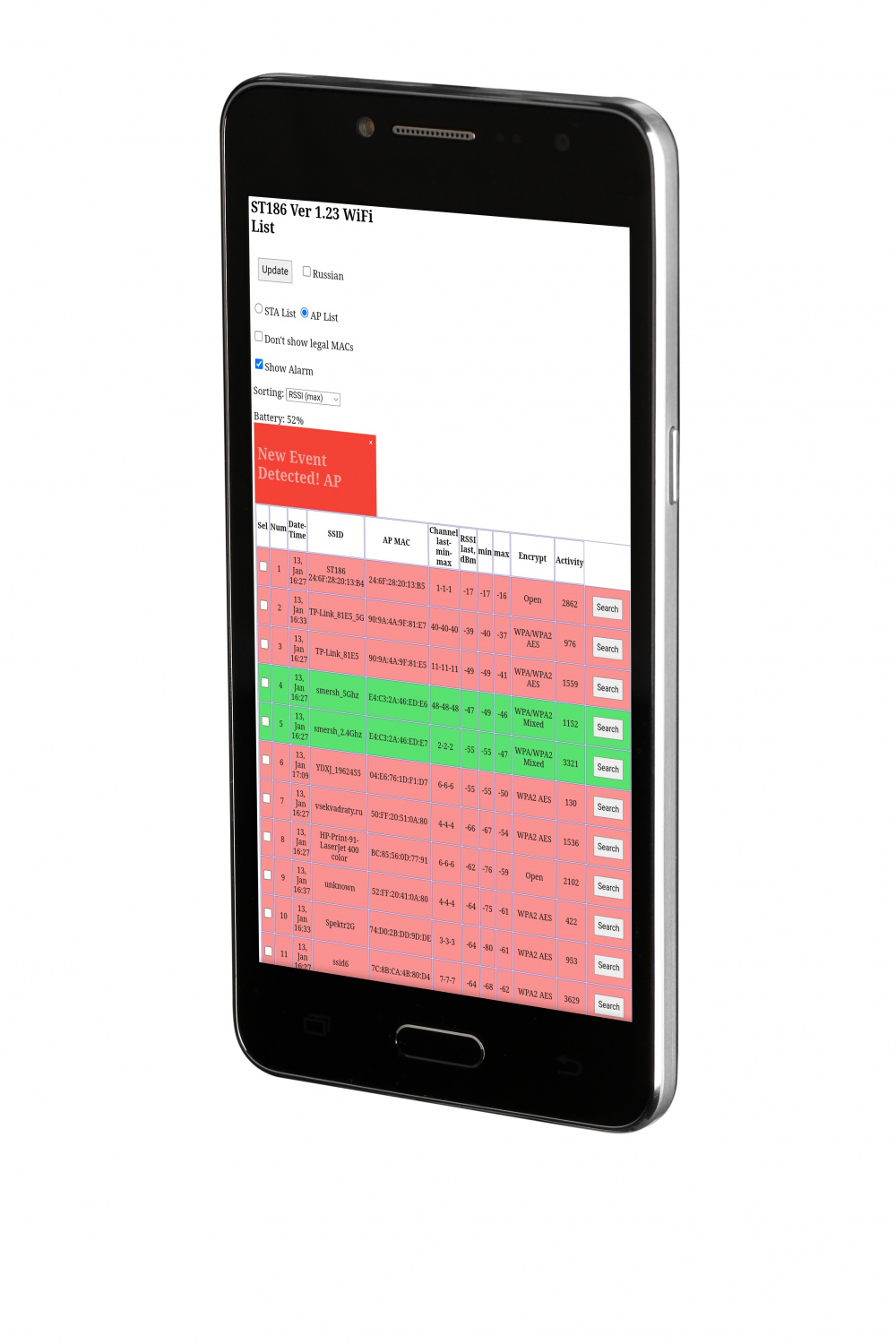

Working with iOS, Android, Windows


Data indication in a form of the WEB page.  ST186RM2.jpg
No need in downloadable software.
Data transfer between the ST186RM and the device (PC, smartphone, tablet) is done with wifi connection.


  • Small size receiving module, built-in battery
  • Autonomous work ability
  • Ability to radio signals receiving is provided on both internal and external antenna

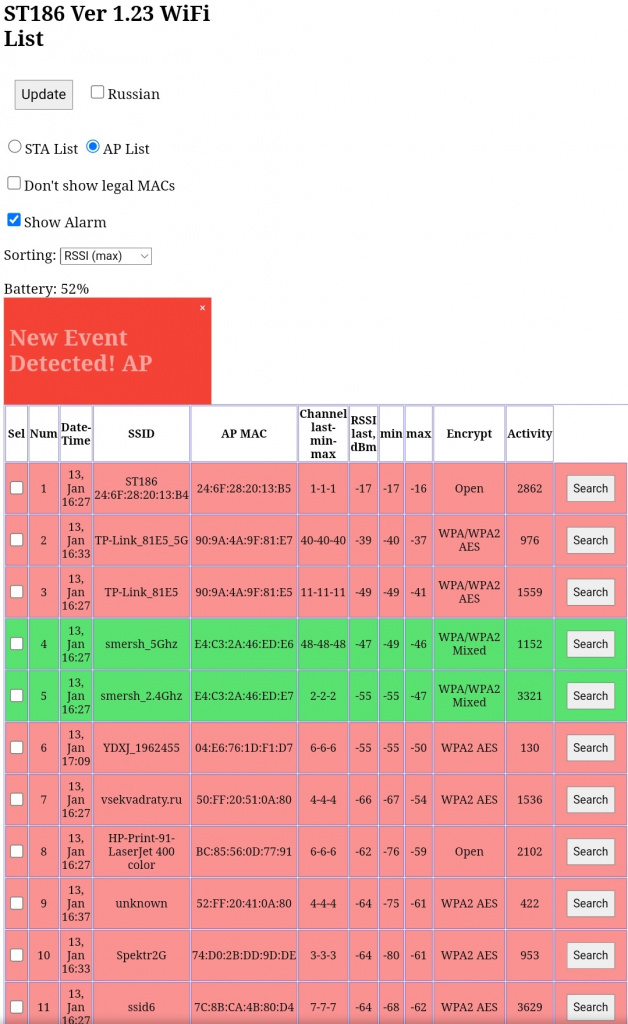

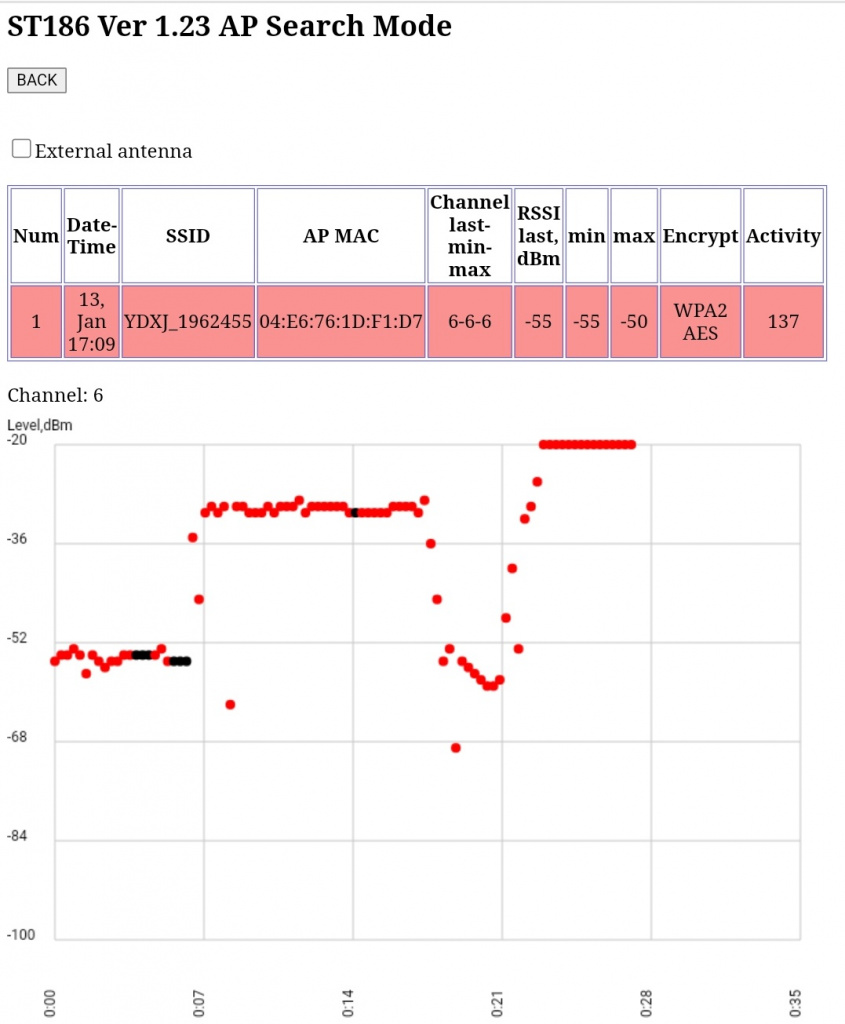

186 Screen1.jpg 186 Screen3.jpg



Standart WiFi   802.11 a/b/g/n/ac/k/
Interface   WiFi, USB
Internal power source   Li-ion battery 0.8a/h
Dimensions ST186RM, without antenna, mm   83X52x15


Receiving module ST186RM


 «USB micro – USB» cable


USB flash drive

Directional antenna (optional)
