Radio monitoring complex ST191 is intended for:
Device is controlled by the windows application
- Radio signals reception and analysis in 0.07-18GHz frequency range
- Wi-Fi Networks analysis
- Cellular base stations analysis
Device is controlled by the windows application
Main components description
Radio Receiving Device

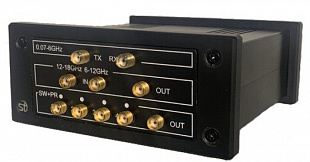

Radio receiving device “ST191B” (RRD) has a rectangular shock-resistant chassis made from duralumin. RRD, in maximum package, consists of 3 main parts:
| - Radio receiving module with 0.04 - 6GHz frequency range - SHF converter 6-18GHz - Antenna switch with 4 inputs, combined with the preselector. Radio receiving module with 0.04 - 6GHz frequency range is considered as basic unit. |
 |
| RRD modules connection is done by the included coaxial cables. Connection diagram is shown on the picture |  |
| Back panel also divided on 3 parts similary to the front panel. |
 |
| In basic package RRD is a radio receiving module 0.04 - 6GHz frequency range |  |
Cellular base stations and Wi-Fi networks analyser “ST182”
ST182R provides:
|  |
| Package | |
| Basic package | |
| “ST191B” Radio receiving device | 1 |
| USB cable 2pcs | 1 |
| USB flash-drive with software | 1 |
| Additional package | 1 |
| Antenna switch + preselector “ST191.SW+PR” | 1 |
| SHF converter “ST191.SHF” | 1 |
| Cellular base stations and Wi-Fi networks analyser “ST182” | 1 |
| «SMA-SMA» cable (Amount depends on RRD configuration) | 1 |
| USB cable » (Amount depends on RRD configuration) | 1 |
| Power supply (Amount depends on RRD configuration) | 1 |
