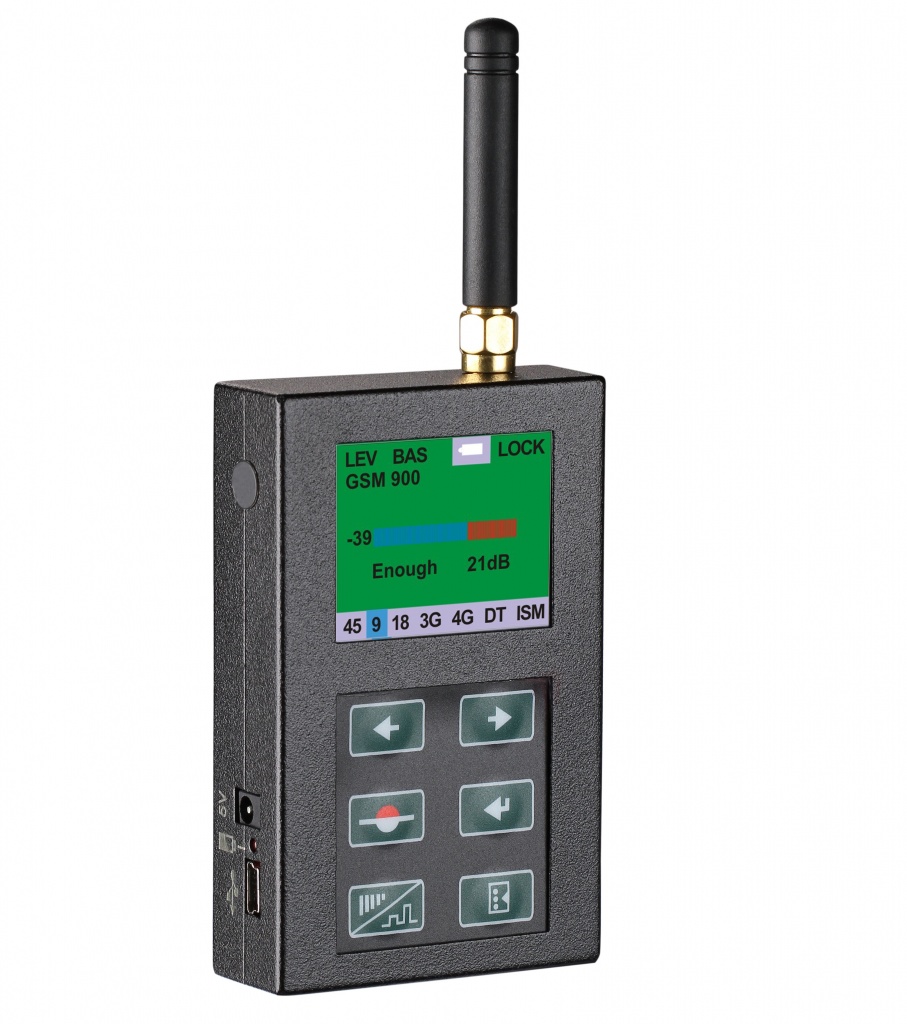

ST169
ST169
ST 169 IS DESIGNED FOR THE MEASUREMENT OF RADIO EMISSION JAMMERS INTENDED TO SUPPRESS SIGNALS OF THE CDMA 450, GSM, 3G, 4G, DECT, WLAN and BLUETOOTH STANDARTS.
Definition of real area of suppression and associated frequency bands of controlled standards.
- Easy to use
- Rapid result
|
|
|
|
OPERATION ALGORITHM

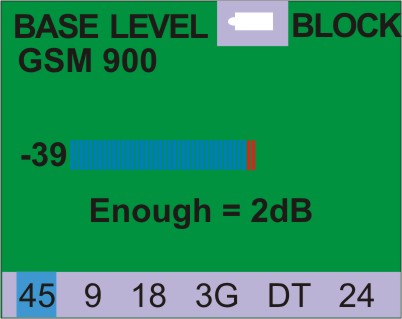

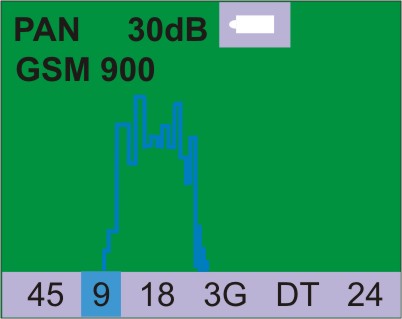

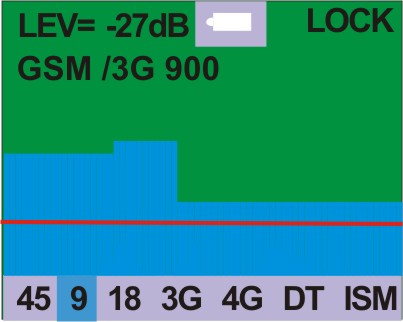

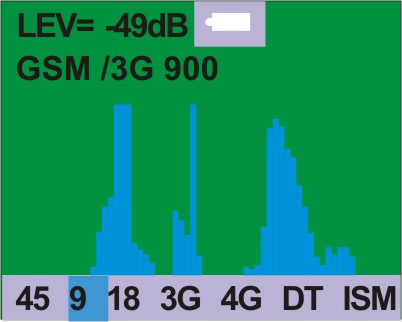

Measurement, processing and display of radio emission level of base stations and jammers in numerical and graphical form.

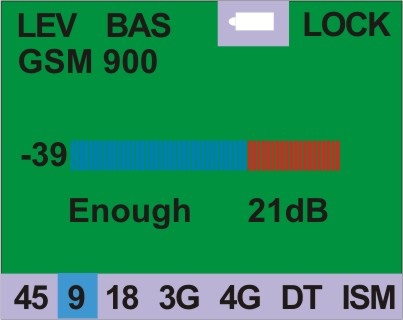

Displays the result of the check in the form of an information line.
KEY FEATURES
Selective reception of radio signals in the frequency ranges of selected standards.

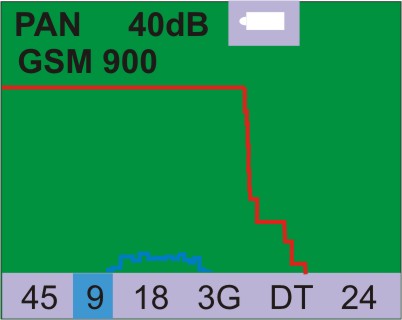

Comparison signals of the base stations and signal of jammer.

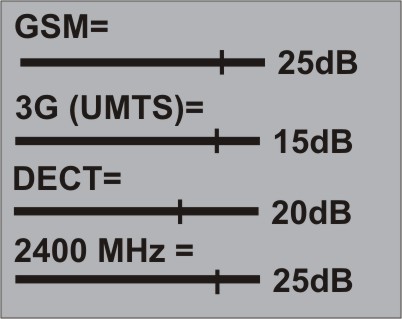

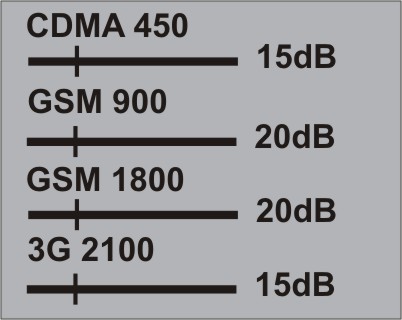

Selection of suppression ratio.
|
SPECIFICATIONS |
|
|
1 Frequency range, MHz |
463-467.5 935-960 1800-1900 2125-2170 2400-2485 2600-2680 5150-5825 |
|
2 Threshold sensitivity, dB 935-960 1800-1900 2125-2170 2400-2485 5150-5825 |
-75 -85 -65 -50 |
| 3 Aversdge dynamic range, dB | 65 |
| 4 Indication | OLED display 169X128 |
| 5 InterfaceUSB 2.0 | 5 |
| 6 Average current consumption, mA | 500 |
| 7Power Supply | Li-Pol Battery 3.6V |
| 8 Overall dimensions main unit | 90 X 54 X 211 |
| 1 Main Unit | 1 |
| 2 RF antenna | 1 |
| 3 USB cable | 1 |
| 4 Power supply/charger | 1 |
| 5 USB flash with User manual | 2 |
