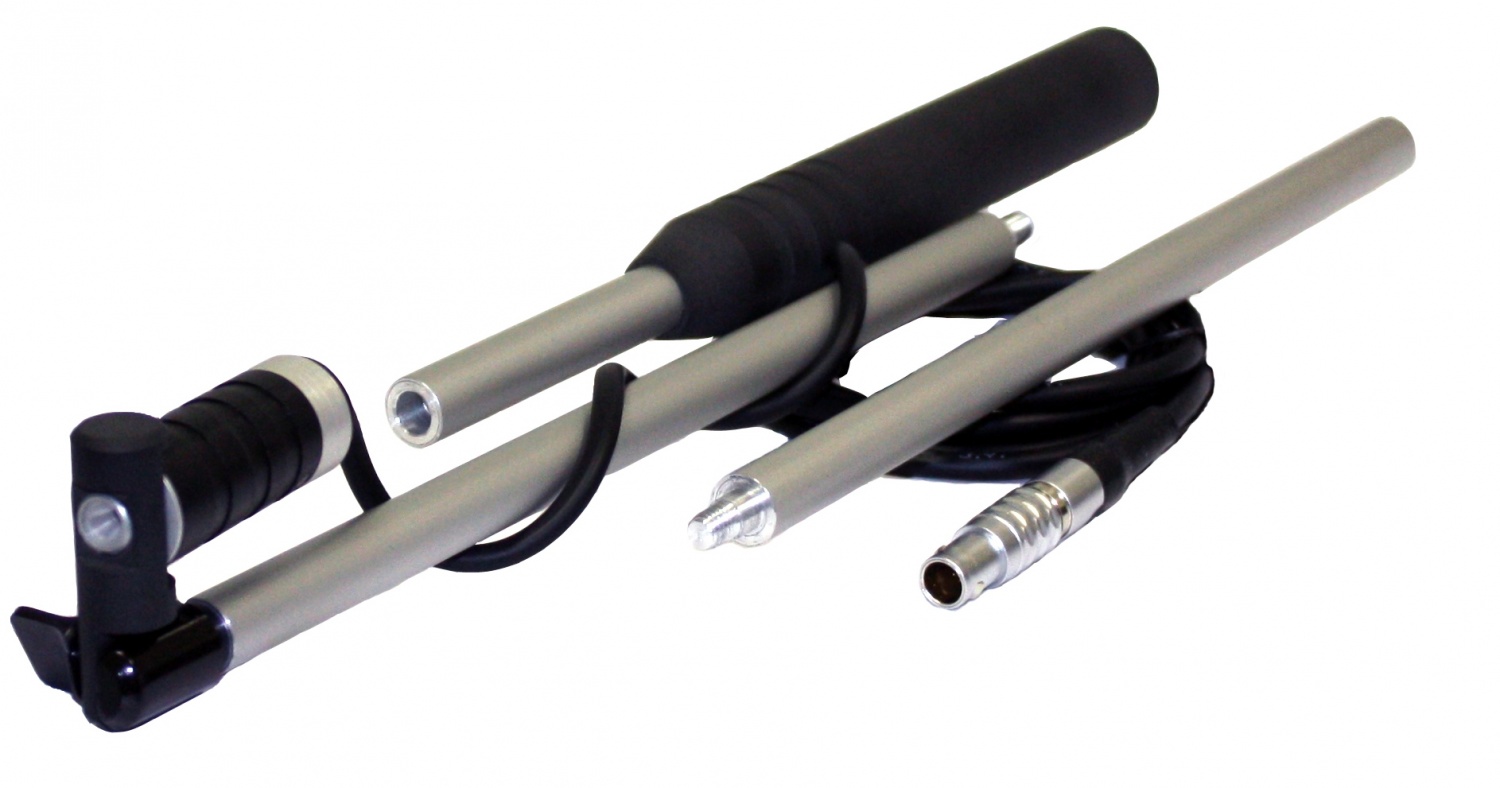

ST131.IR Infrared Sensor
ST131.IR Infrared Sensor
«ST131.IR» is designed to work in pair with «ST131» or «ST131N» to assess infrared emission level in set spectum range.
Tripod allows for easier IR transmitting devices search because of their specific location(For example on the outer side of window).
Tripod consists of 4 sections with overall maximum length 900 mm. Rotation mechanism allows setting required angle in range of 0-180°.
Tripod allows for easier IR transmitting devices search because of their specific location(For example on the outer side of window).
Tripod consists of 4 sections with overall maximum length 900 mm. Rotation mechanism allows setting required angle in range of 0-180°.
| SPECIFICATIONS | |
| Sensitivity threshold, dBm | -70 |
| Dynamic range, dB, not less | 75 |
| Frequency range, MHz | 0.01-30 |
| Spectrum range, nm | 770-1600 (550-1100) |
| Angle of sigh, degrees | 30 |
| IR sensor's dimensions, mm | L= 55, D=25 |
| Wire length, m | 1.5 |
| Combined maximum length, m | 0.9 |
| Weight, kg | 0.3 |
|
DELIVERY SET |
|
| IR Sensor | 1 |
| Turning mechanism | 1 |
| Handle | 1 |
| Section | 3 |
|
Technical description and operating manual |
1 |
| Bag | 1 |
