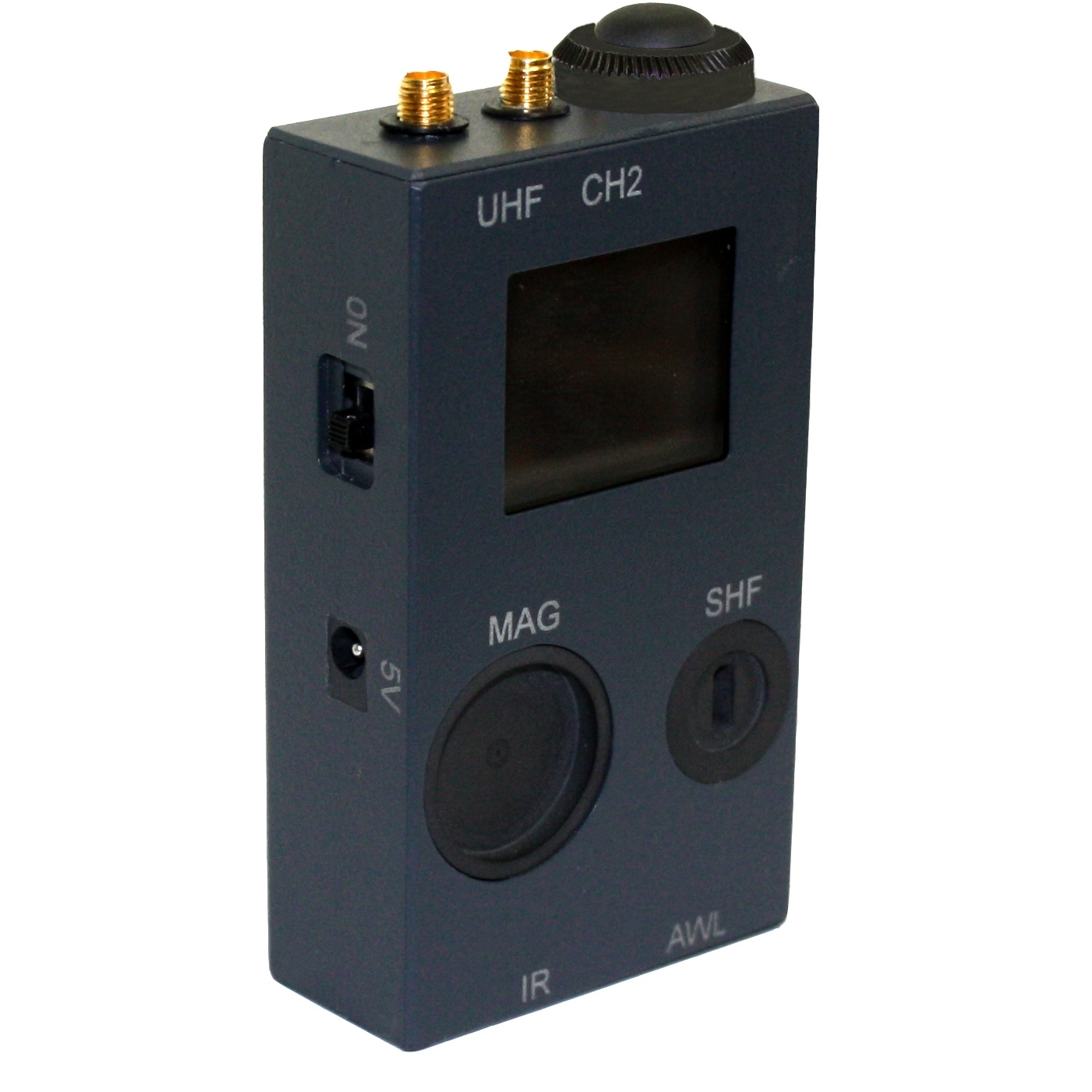

ST131.TEST
ST131.TEST
ST131.TEST is desgined to control work efficiency of ST131 and ST131N. It provides control for all channels of main block and other complementary sensors.
ST131.TEST is an independent device with ability to form and emit test signals. It also nonlinear transition which is required to test nonlinear transition detectors.
ST131.TEST is an independent device with ability to form and emit test signals. It also nonlinear transition which is required to test nonlinear transition detectors.
| SPECIFICATIONS | |
| "UHF" output: | |
| Frequency values, MHz | 200, 600,1000, 1750,3500 |
| Modulation | AM, FM, FHSS |
| Modulation frequency, Hz | 300, 600, 1000, 1500 |
| "СH2" output and magnetic field emitter "MAG": | |
| Frequency values, kHz | 1, 5, 15, 60, 120 |
| "AWL" output | |
| Frequency values, kHz | 1, 3, 5, 10, 14, 500, 1000,5000,10000, 20000 |
| Microwave emitter "SHF" | |
| Frequency, GHz | 8 |
| Modulation | PCM |
| “IR” infrared emitter | |
| Spectrum range, 10% level, nm | 750-1100 |
| Modulation | PCM |
| Indication | OLED display 128X64 |
| Power | |
| Power supply | Li Pol battery, 2.2A/h |
| Maximum current consumption, mA | 500 |
| Main unit dimensions, mm | 110X60X28 |
| DELIVERY SET | |
| Main unit | 1 |
| "SMA-SMA" cable | 1 |
| "SMA-BNC" adapter | 1 |
| RJ-45 cable | 1 |
| Power supply/charger | 1 |
| Package | 1 |
| Flash-drive with «Technical description and operating manual» | 1 |
