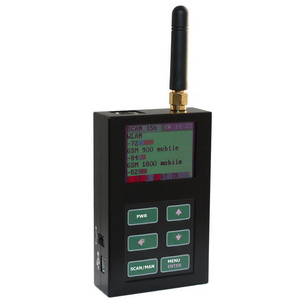

ST 165 Wireless Protocol Detector
ST 165 is designed for detection identification of mobile radio transmitters of cellular communications standards (mobile phones and modems of GSM 900, 1800, UMTS), wireless data transmission (WI FI and BLUETOOTH) and cordless phones (DECT).
Additionally indication of base stations power signal strength and data exchange intensity is provided.
From now forward all of specified units will be unified as DRTD – Digital Radio Transmitting Devices.
To detect signals the ST 165 scans a series of frequency ranges of the known transmission standards. The user can set up the detection threshold and the number of desired frequency bands.
Signals identification is performed on basis of analysis of detected signals time parameters.
AUTOMATIC MODE
This mode is intended for DRTD automatic detection when it exceeds the operation threshold set by user.
Signal data is logged.
Scheduled work is provided.
![]() |

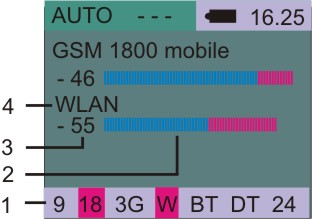

1 |
Short names of digital data transmission standards chosen by user for the work. If the alarm threshold is execeed then the background of the name is highlighted red. |
2 |
32-segmental indicator signal level meter. | |
3 |
Signal level numerical value, dB. | |
4 |
Names of digital data transmission standards |
MANUAL MODE
This mode is intended for locating a DRTDIn this mode indication BASE STATION signals level is provided.
![]() |

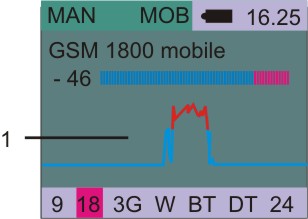

1 |
Change in time of signal level (TIME DIAGRAM) |

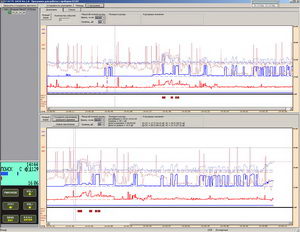

LOG VIEW
This MODE is desined for viewing the log of events .
Time of event, its duration, type of event, signal strength are displayed.
![]() |

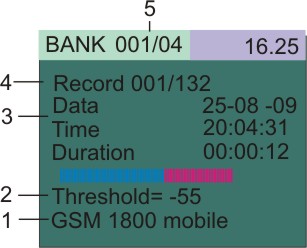

1 |
Detected standard |
2 | Threchold of ALARM | |
3 | Information on event | |
4 |
Viewed event No./Amount of event s in the bank |
|
5 |
Viewed bank No./Amount of used banks |
ADDITIONAL POSSIBILITIES
- Setting thefrequency UMTC according to the location directly by the user
- Built-in Relay (terminals on the external port). Extends the functionality of the ST 165 to remotely control Alarm indicators
SPECIFICATIONS | |
Frequency ranges, MHz |
430-465(with ST165.CDMA) |
Level ranges of displayed signal, dB |
890-960 MHz -75 – +10 1710-1900 MHz -70 – +10 1940-2144 MHz -80 – +10 2400-2485 MHz -70 – +10 |
Alarm level setting range, dB |
60
|
Built-in power supply |
Li Pol 3.6V
|
Indication | Color OLED Display 160X128 |
Consumption current, mА | 750 |
Dimension main block (without antenna), mm | Li-pol 3.6V |
Consumption current, mА | 300 |
Dimensions, mm | 90x54x21 |
DELIVERY SET | |
1. Main block |
1
|
2. Аntenna |
1
|
3. ST165.CDMA* (* to be supplied optionally) |
1
|
4. Power Supply/Charger |
1
|
5. USB cable |
1
|
6. USB flash drive with software and user's guide |
1
|
|
|
