110 RF Detector

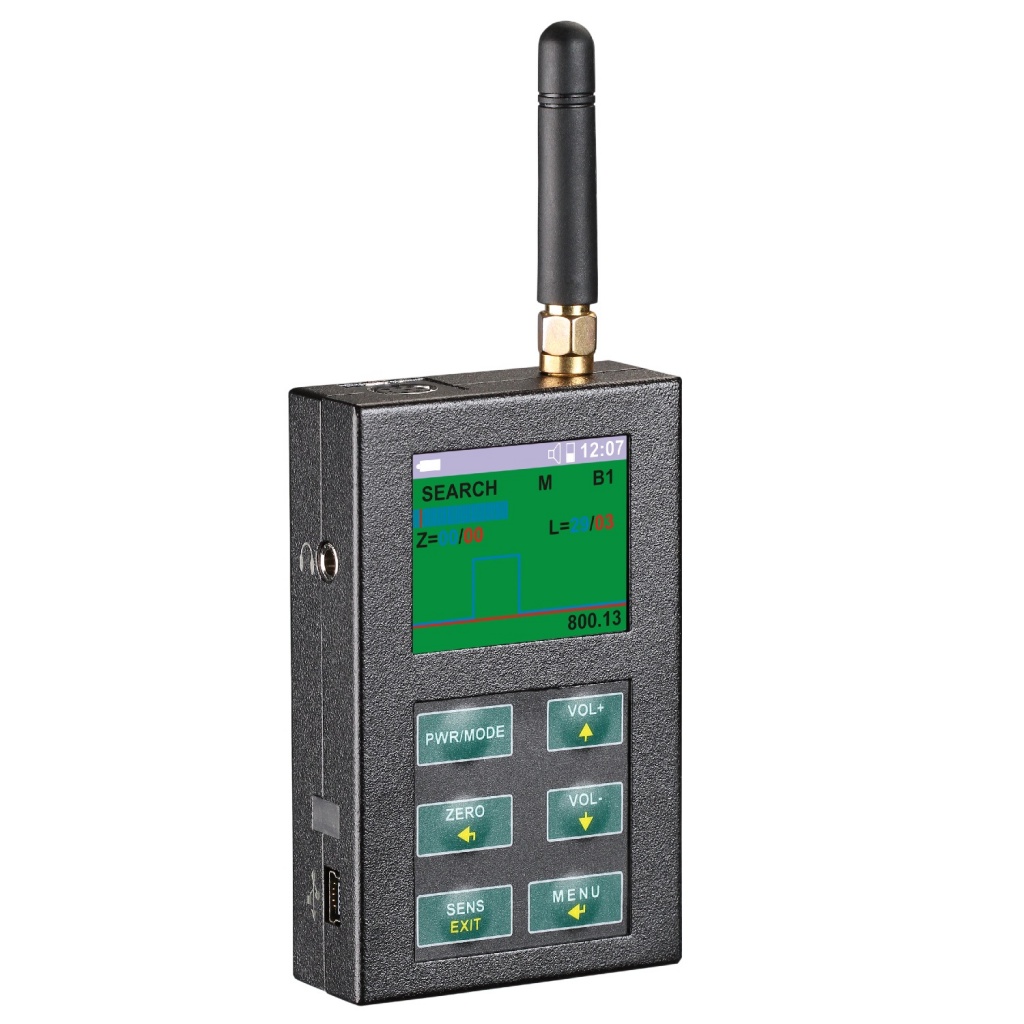

ST110 Professional RF detector
ST110 is designed for detecting and locating of radio transmitting bugging devices, such as:
Radio microphones, Including Burst transmitters, and devices with frequency hopping technology
GPS TRACKER
GSM bugs
Wireless video cameras, stethoscopes
Unauthorized used WLAN and DECT devices
Key features
Separate indication of analog and pulse signals
Displaying of identified signals of GSM (2G), DECT, WLAN (2.4GHz)
Frequency meter
Oscilloscope
Timing diagram
Special software “ST110 ANALYZER”
Firmware update via internet
24/7 monitoring
Log of events
Principle of operation of ST 110 is based on broadband detection of electrical field
ST 110 operates in two main modes: SEARCH and MONITOR.
Additional modes include: LOG VIEW, OSCILLOSCOPE and RECORDER.
SEARCH MODE
This mode is intended for search and detection of RD. Usage of this mode is based on visual estimation of signal level on 32-segmental scale. Additionally separate indication of continuous and pulse signals, identification signals of GSM, DECT, BLUETOOTH, WLAN standarts and stable signal frequency are used.
The possibility of acoustic control by means of headphones is provided.
![]() |
1 |
32-segmental indicator of average power of radio-frequency emission source (is pointed on continuous output radio transmitters). |
2 |
32-segmental indicator of impulse component level of radio signal (is pointed on impulse radio transmitters, such as GSM, DECT etc.). | |
3 |
Sensitivity of the indication scales («L» – low, «M» – medium, «H» – high). | |
4 |
Frequency bands («B1», «B2») LOW PASS FILTER "LPF" ("F") /short-period indication of set zero scale |
|
5 |
Current value of impulse/constant component level, comparing with zero level, dB; | |
6 |
Value of periodic signal frequency, MHz | |
7 |
Identified data transfer standards (GSM, DECT, DECT BASE, BLUETOOTH or WLAN | |
8 |
Change in time of signal level with dominant constant component | |
9 |
Change in time of signal level with dominant impulse component | |
10 |
Current value zero level of impulse/constant component, dB |
MONITOR MODE
This mode is designed for independent operation of ST110 on preset conditions. The information about detected
signals is saved by means of non-volatile memory of the device (9 banks, each for 999 events).
Scheduled work operation is also provided.
![]() |
1 |
Indicators of RF transmitter signal level |
2 |
Graphic labels of alarm threshold levels | |
3 |
Sign of no permission for recording in EVENT LOG | |
4 |
5-second interval countdown | |
5 |
Current value of impulse/constant signal component level, comparing with absolute level, dB |
|
6 |
Value of the alarm threshold levels of impulse/constant signal, dB |
LOG VIEW MODE
This mode is intended for viewing the log of events taking place in the result of the unit running in MONITOR
mode.The classification of the events by time, duration or value of the signal level is provided.
|
1 |
Number of viewed bank /Number of banks in action |
2 |
Number of viewed event/Number of events in bank | |
3 |
Frequency range, in which the alarm happened |
|
4 |
Signal properties in the moment of alarm threshold excess |
OSCILLOSCOPE MODE
![]() |
1 |
Type of configuration (A - automatic M - manual) and relative value of |
2 |
Oscillogram | |
3 |
Value of horizontal trace in conversion to full-screen values (1, 2, 4, 8, 16 and 32 ms). |
ADDITIONAL POSSIBILITIES
SPECIAL "ST110 ANALYZER" SOFTWARE
The software is intended to:
- time graphic display of data and the results of operation of the ST 110
- the ST 110 remote full control using PC
- extended settings assignment for MONITOR mode
- load and display textual and graphical information of the operation of the ST 110 in MONITOR mode (Event Log)
- firmware updating via internet

SPECIFICATIONS | |
Main Unit | |
Frequency range , MHz |
50-2500 |
Threshold sensitivity, dBm |
-75 (50 МHz)
-70 (1500 МHz) -50 (2500 МHz) |
Dynamic Range of indication, dB |
55 (50-2000 МHz)
40 (2000-2500 МHz) |
Sensitivity of frequency meter , dBm |
-35 (50 МHz)
-50 (500 МHz) -20 (2500 МHz) |
Frequency measurements accuracy, % | 0.005 |
Cut-off frequency of LPF, MHz | 750 |
Built-in power supply battery | Li-pol 3.6V |
Consumption current, mА | 65 |
Dimensions, mm | 90 x 54 x 21 |
SHF antenna-detector ST110.SHF |
|
Frequency range , MHz | 2000-7000 |
Threshold sensitivity, W/cm2 | 2x10-10 |
Dynamic Range , dB | 45 |
Consumption current , mА | 25 |
Dimension, mm | D=72, L=16 |
DELIVERY SET | |
1. Main block |
1
|
2. RF antenna |
1
|
3. SHF antenna-detector «ST110.SHF» (to be supplied optionally) |
1
|
4. USB cable |
1
|
5. Power supply/Charger |
1
|
6. USB flash drive with software and user's guide |
1
|
|
|
