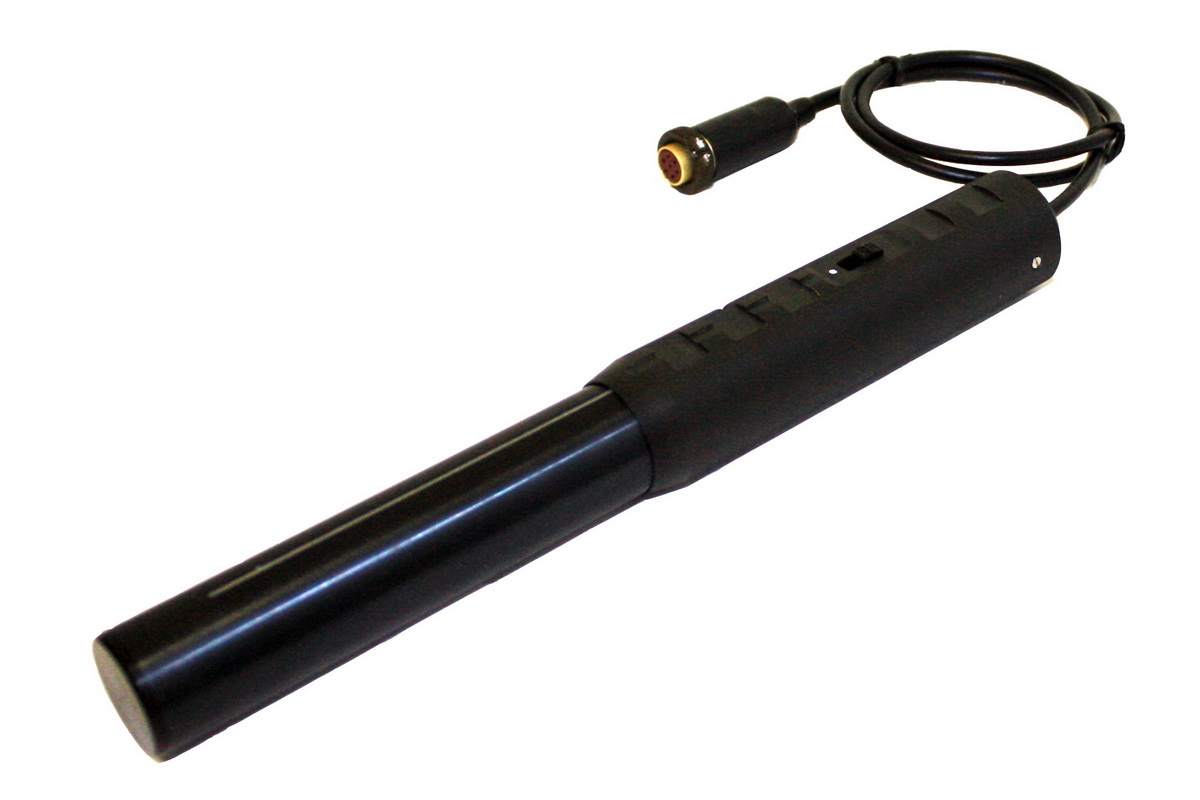

ST034.MF Magnetic Field Probe
ST034.MF Magnetic Field Probe
ST034.MF is designed to be used in pair with ST034.
ST034.MF an inductive transducer alternating magnetic field into an electrical signal.
«ST034.MF» structurally consists of a primary transmitter (ferrite antenna) and a block amplification and processing.
Probe can work in two modes:
- measurement of the magnetic field;
- measuring the difference in field strength, which considerably weakens the influence of distant powerful magnetic fields, as well as the influence of other interfering influences (acoustic, vibro-acoustic, etc.).
SPECIFICATIONS | |
Frequency range, kHz | 0,4÷12 |
Sensitivity threshold, T/Hz1/2 | 10-11 |
Dynamic range, dB | 50 |
Dimensions (no wire), mm | L=230, D=24 |
Weight, kg | 0.14 |
Delivery set | |
ST131.MF | 1 |
Bag | 1 |
User Manual | 1 |
