ST181
ST181
ST181 provides analysis of 2G, 3G and 4G networks of all mobile operators using the “ST181 Analyzer” windows software.

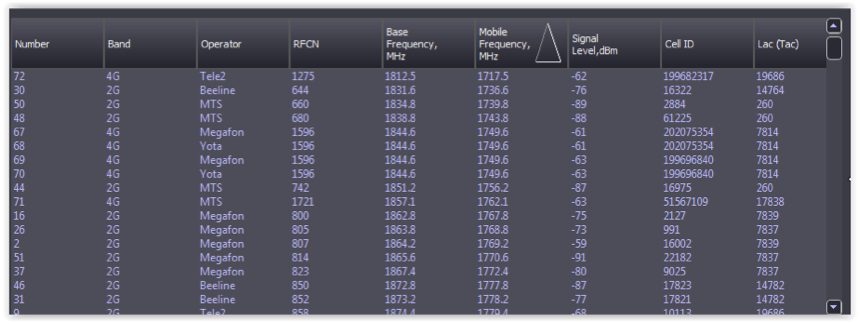

List of detected base stations

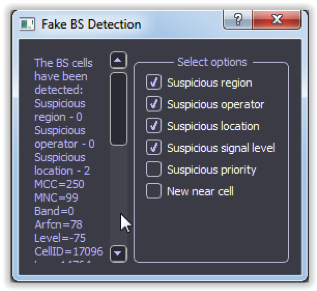

Fake BS detection
Selectable detection conditions and alarm indication
|
|
Using of ST181 together with ST154 and ST167 provides solution for those tasks:
Automatic installation bands of cellular. Only real working cellular bands in specific area are being analyzed;

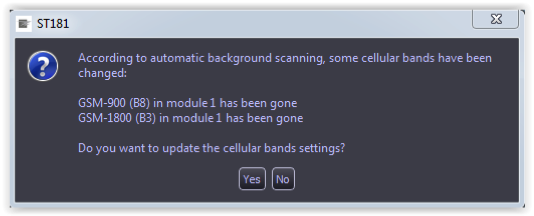

Automatic installation bands of cellular. Only real working cellular bands in specific area are being analyzed;Constant «Background» monitoring gives ability to operative new frequency bands detection and adapt them to changing radio environment
Connection to a PC via USB connection
| Frequency range | B8 (2G 900), B3 (2G 1800), B2, B8 (3G 900), B1, B3 (4G1800), B7, B8 (4G 900), B20 (800) |
| Interface | USB |
| Dimensions ST181.R, mm | 83X52x15 |

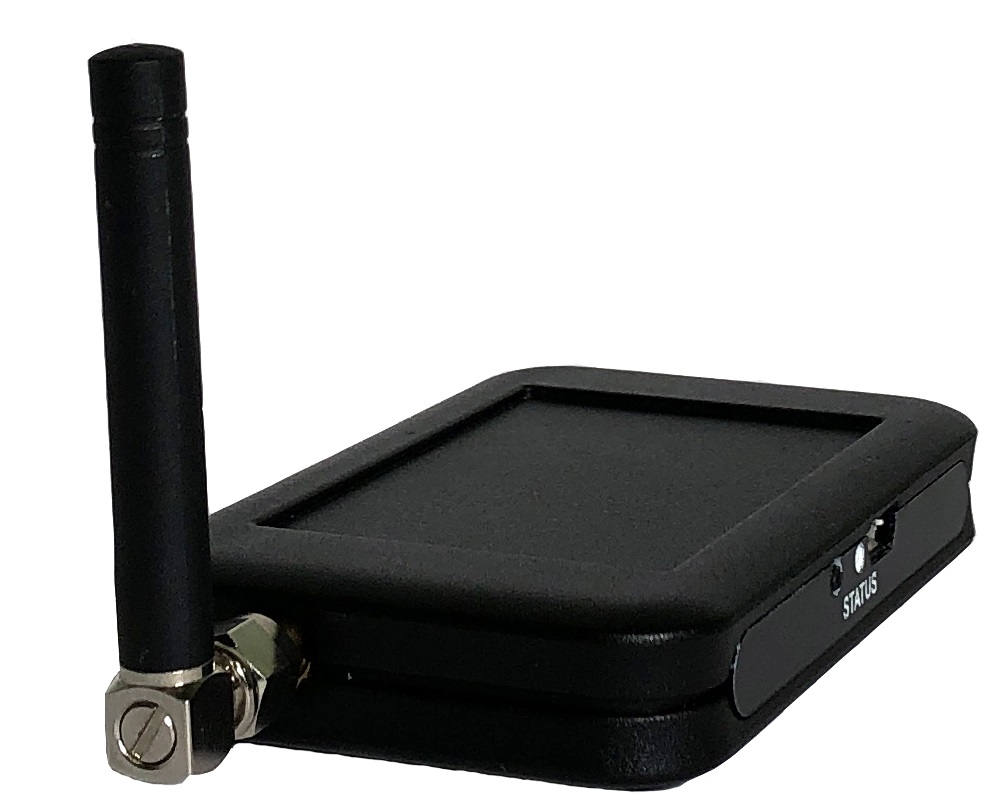

| Radio receiver device (ST181R) | |
| UHF antenna | |
| USB cable | |
| Charger/power supply | |
| USB flash drive with the software and “Technical description and operating manual” |
