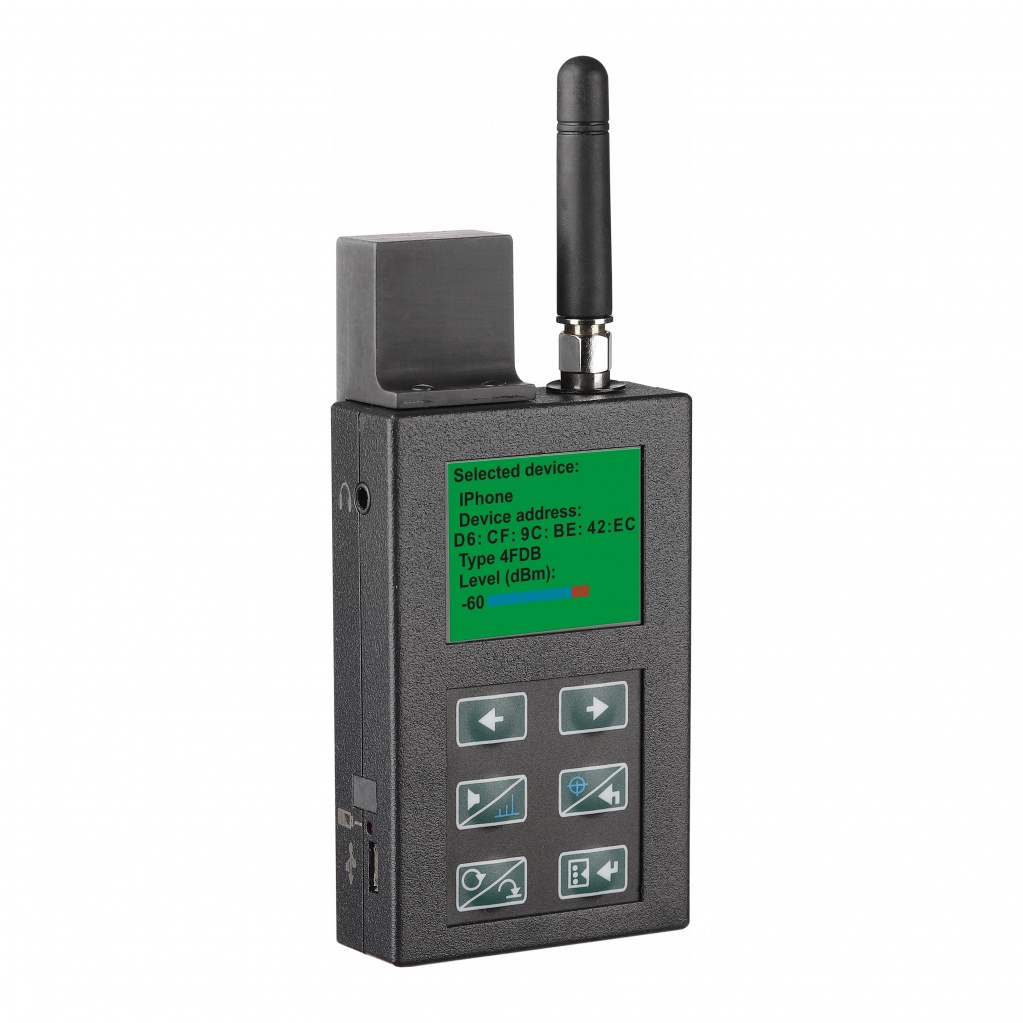

ST167W5
|

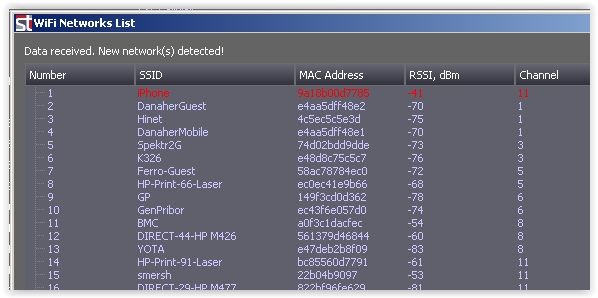

ST167WB is a modification of ST167 "Betta". Displaying list of access points (WLAN 2.4, 5GHz 802.1a,b,c,n), their names, MAC addresses, used channel and signal strength. |
|
|
|
|
| SPECIFICATIONS | |
|
Frequency range, MHz |
25-6000 |
| Threshold sensitivity, dBm |
-75 (1000MHz) -55(5000MHz) |
|
Passband, MHz
|
1, 8, 20 |
| Average dynamic range, dB | 65 |
| Frequency measurements accuracy, MHz |
0.01
|
| Power Supply | Built-in Li-Pol Battery 3.6V (2.2A/h) |
| Average current consumption, mA | 500 |
| Maximum current of relay contacts, mA | 100 |
| Maximum resistance of closed raelay contacts, Ohm | 25 |
| PC interface |
USB 2.0 |
| Overall dimensions main unit, mm | 90 X 54 X 21 |
| DELIVERY SET | |
| Main unit | 1 |
| RF antenna | 1 |
| USB cable | 1 |
| Power supply | 1 |
| Cable for connection to the relay contacts | 1 |
| USB flash drive with software and user's guide | 1 |
|
|
|
