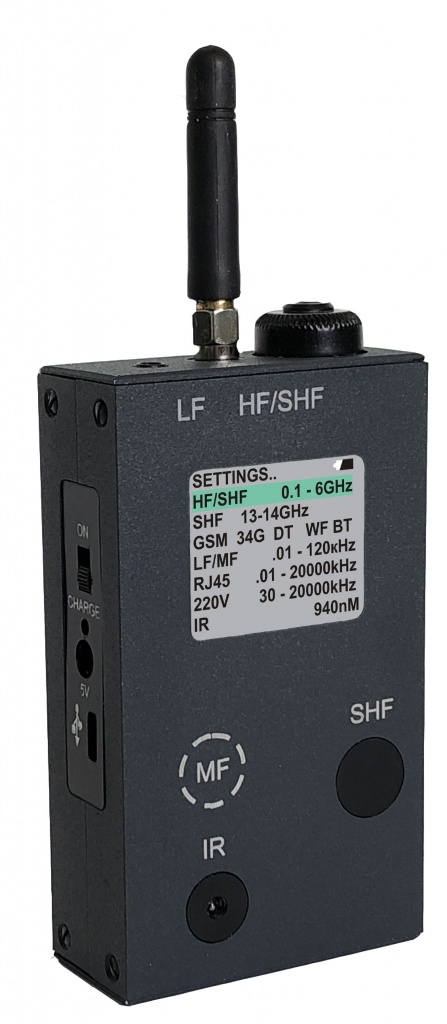

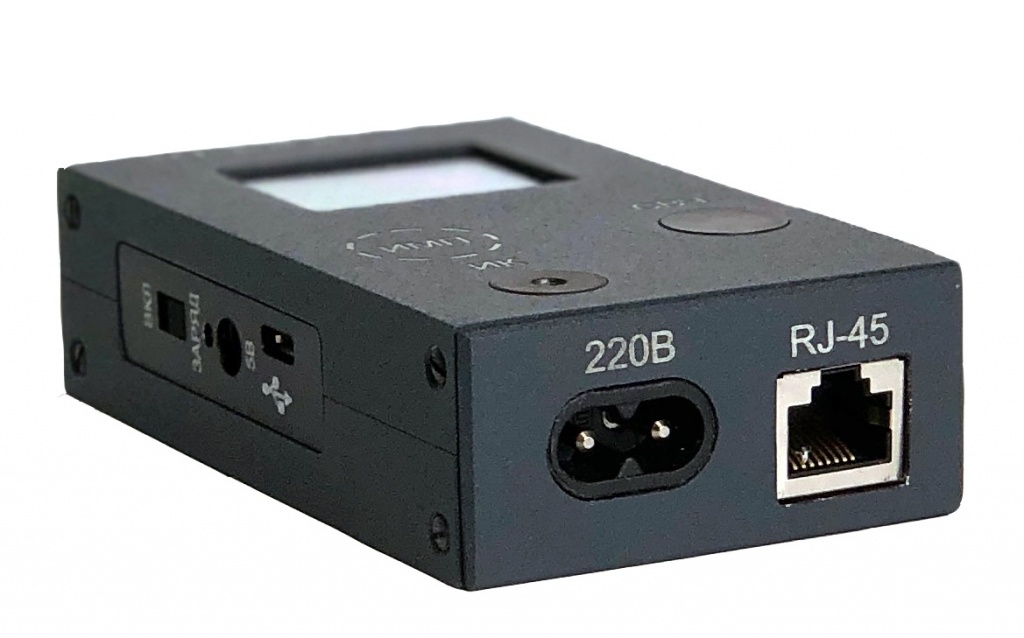

ST122 Multifunctional Advanced Simulator

ST122 is designed to imitate operation of almost all types of bugging devices, such as:

RF microphone
Hardwire
Carrier current
Optical
Ultrasonic

It also imitates electromagnetic interference of electronic devices (TEMPEST), such as solid state dictaphones and cell phones

Places of activity

 Training of TSCM personnel
 Testing functionality of the TSCM equipment

Laboratory measurement


Key features
Complete signal generator in a wide frequency range: 0.01-20MHz,  100-6000MHz and 14-14.5GHz

Special software “ST122.Remote”

Firmware update via internet

Self-powered

Small dimensions

Robust design

ST122 is emitting:

  • Radio signals with user-defined frequency value in 100 – 6000 MHz range. A variable output power. AM, FM, FSK modulation and FHSS, DSSS, PULSE type of signals
  • SHF signal 14-14.5 GHz.
  • Signals imitating data transmission standards (GSM, DECT, BLUETOOTH и WLAN)
  • HF and LF signals in the 220V main power lines and RJ-45 low current lines.  AM, FM and PWM signals
  • IR signal with LF signal modulation and possibility to select a subcarrier frequency
  • Sound and ultrasound signals with user-defined frequencies or selected octave and third-octave filter frequencies. (Direct connection of speakers to the ST122 output socket is available)
  • Low frequency magnetic field

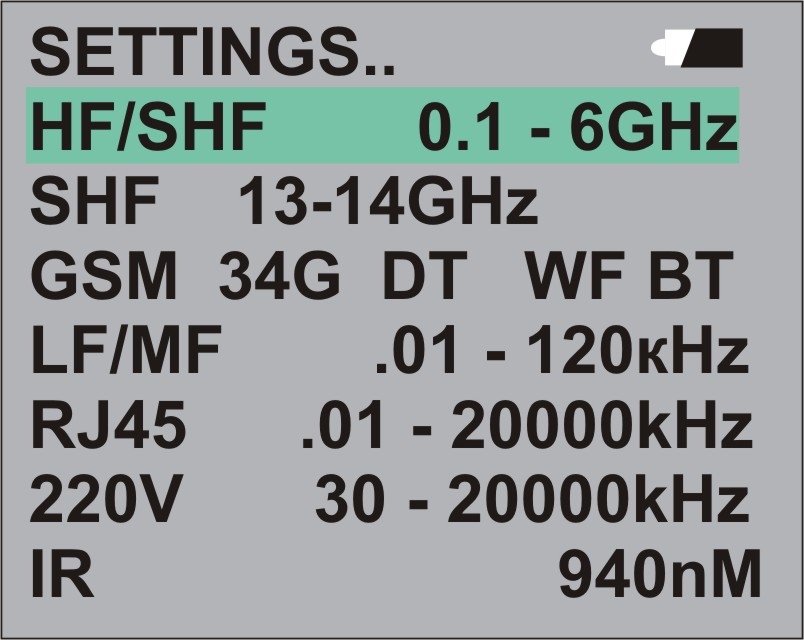

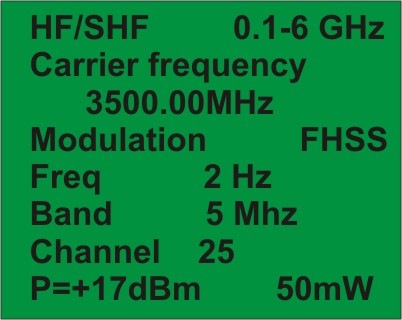

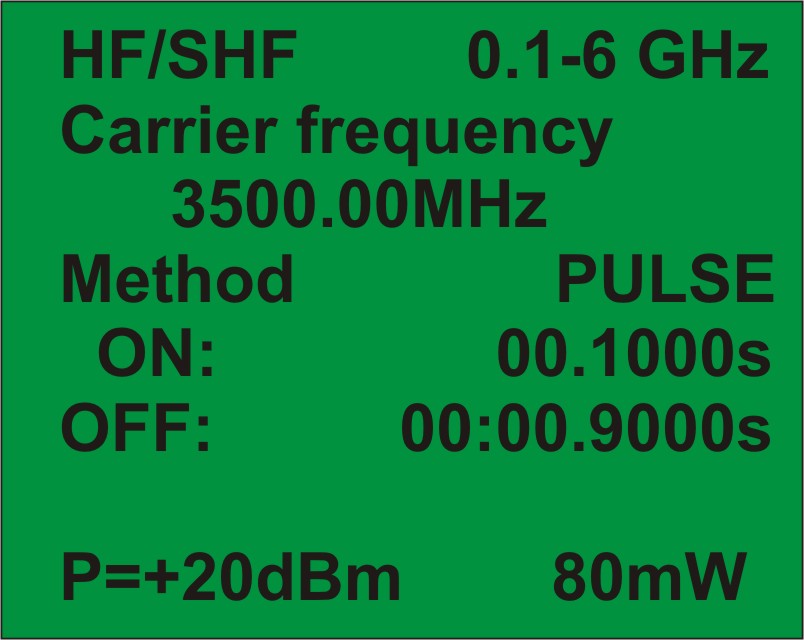

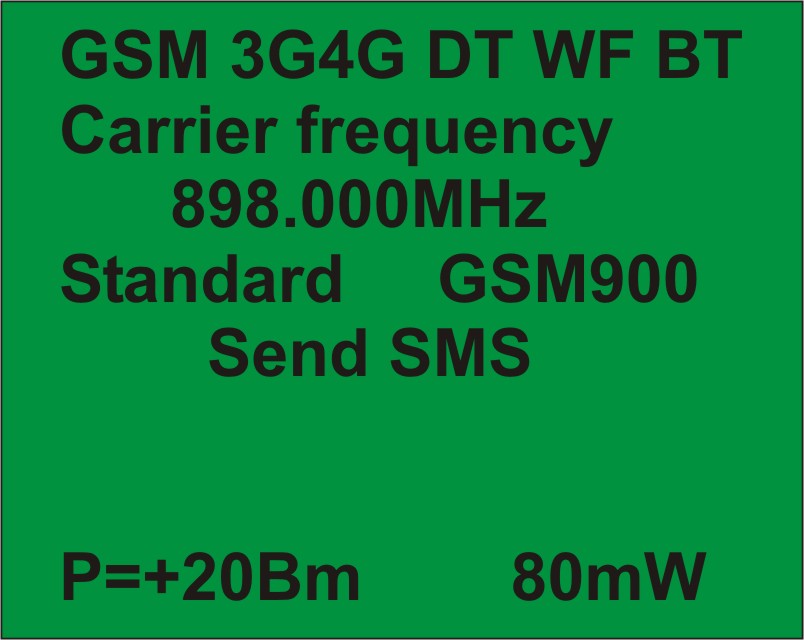

меню.jpg gsm.jpg pulse.jpg fhss.jpg

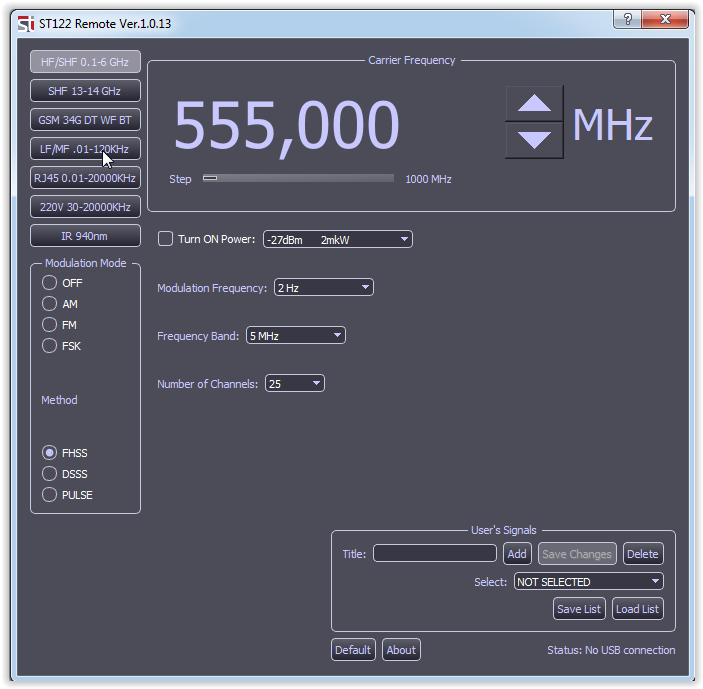

Screen Shot 07-23-19 at 02.21 PM.PNG

SPECIFICATIONS

"HF/SHF" socket
Frequency range, Mz 100-6000
Frequency-tuning step, kHz 10, 100, 1000, 10000, 100000
Signal level, dBm -27 – +20*
Stray harmonics, dBm
100-200MHz -15
200-700, 1100-1500MHz -45
800-1000, 1600-6000MHz -30
Signal Sinusoidal, DSSS, FHSS, PULSE
Modulation AM, FM, FSK
Data transmission standards imitation GSM, 3G, 4G, DECT, WLAN, BLUETOOTH
Modulation frequency, kHz 0.5, 1, 5, 15
АМ depth, % 70
FM Deviation, kHz 30 100, 300, 600
Nonlinear distortion of modulating signal, no more than, % 15
Bandwidth of Hopping, MHz 1, 6, 10, 20, 50, 100
Number of Hopping Channels 25, 50, 125, 250
FHSS frequency of hopping, Hz 1, 2, 4, 8
DSSS bandwidth, MHz 0.3, 0,5, 1, 2, 4
PULSE Signal transmission time, sec 0.0001 - 99
PULSE Signal accumulation time, sec 0.01 - 5999
*Variation range depends on signal frequency and selected standard
 “SHF emitter”

 Frequency range, GHz                                  14-14.5
 Modulation                                                     PWM
"RJ-45" socket
Frequency range, kHz 0.01-20000
Maximum signal amplitude, V 3.5
Modulation AM, FM, PWM
Modulation frequency, kHz 0.5, 1, 1, 5, 15
АМ depth, % 15
FM Deviation, kHz 5, 20, 100, 300
The frequency of the PWM signal, Hz 1, 10, 40, 100
Duty cycle 1, 5, 10
"220V" socket
Frequency range, kHz 30-20000
Maximum signal amplitude, V 3.5
Maximum input voltage, V 380
Modulation FM, DSSS
Modulation frequency, kHz 0.5, 1, 1, 5, 15
Distortion, kHz 5, 20, 100, 300
PRF, Hz 1, 10, 40, 100
Duty cycle 1, 5, 10
“IR” emitter
Wave length, nm 940
Subcarrier frequency range, kHz 0.01- 5000
Stray harmonics, dBm 30
Output power, mW 0.5
Modulation AM, FM, DSSS
Modulation frequency, kHz 0.5, 1, 5, 10, 15
АМ depth, % 15
Distortion, kHz 5, 20, 100, 300
PRF, Hz 1, 10, 40 и 100
Duty cycle 1, 5, 10
"LF" socket
Socket Symmetrical
Frequency range, kHz 0.01-120
Maximum output power, W 0.7 (power supply), 0.3 (internal battery)
Power levels, % 7.5, 14, 20, 32, 50, 65, 80, 100
Impedance, Ω 8
Frequency-tuning step, kHz 1, 10, 100, 1000
Octave filters frequency values, Hz 32, 63, 125, 250, 500, 1000, 2000, 4000, 6000, 16000, 31500 63000
Third octave filters frequency values, Hz 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000, 12500, 16000, 20000, 25000, 31500, 40000, 50000, 63000, 80000, 100000,
Nonlinear distortion, no more than, % 1
Modulation AM, FM, DSSS
Modulation frequency, kHz 0.5, 1, 1, 5, 15
АМ depth, % 15
Distortion, kHz 5, 20, 100, 300
PRF, Hz 1, 20
Duty cycle 1, 5, 10
Magnetic field emitter «MF»
Equivalent magnetic moment of magnetic field source with frequency 1kHz, A*m2
Power levels
100% 2*10-4
7.5% 2*10-5
 Interface                     USB
Power
Power supply Li-Polymer battery, 1.8A/h or 220V power supply
Max current consumption without charge, mA 800
Main module dimensions, mm 110X60X28

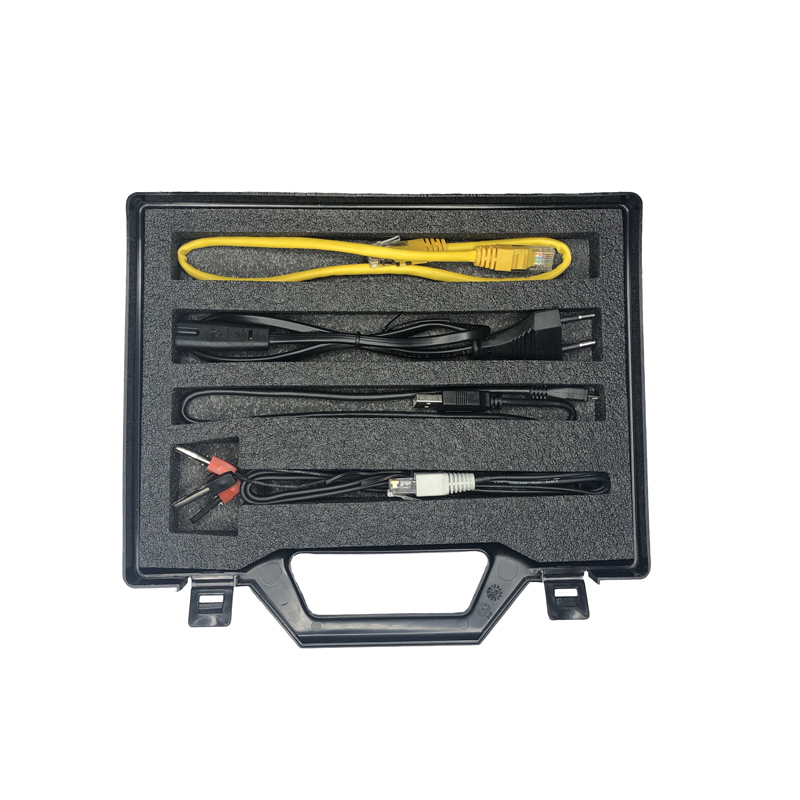

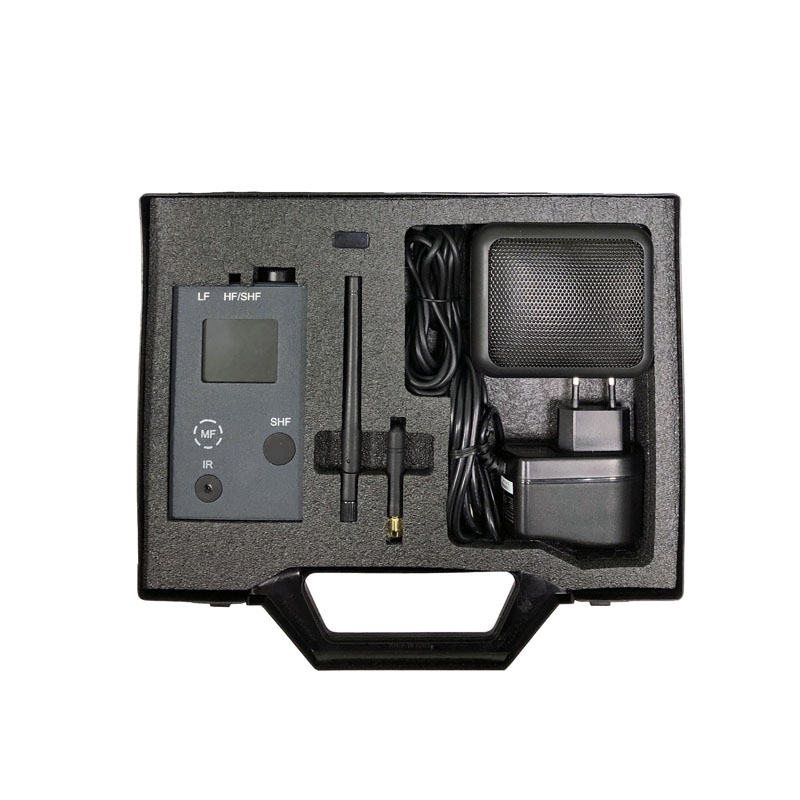

DELIVERY SET
1 Main module
2 RF antenna
3  2.4/5GHz antenna
4 "RJ-45" cable
5 "220V" cable
6 "3/RJ-45" cable
7 "USB" cable
8  USB Flash driver
9   Extermal speaker
10 Power supply/charger 5V/1A
