ST131.SHF is intended for expanding frequency range of ST131 and ST131N

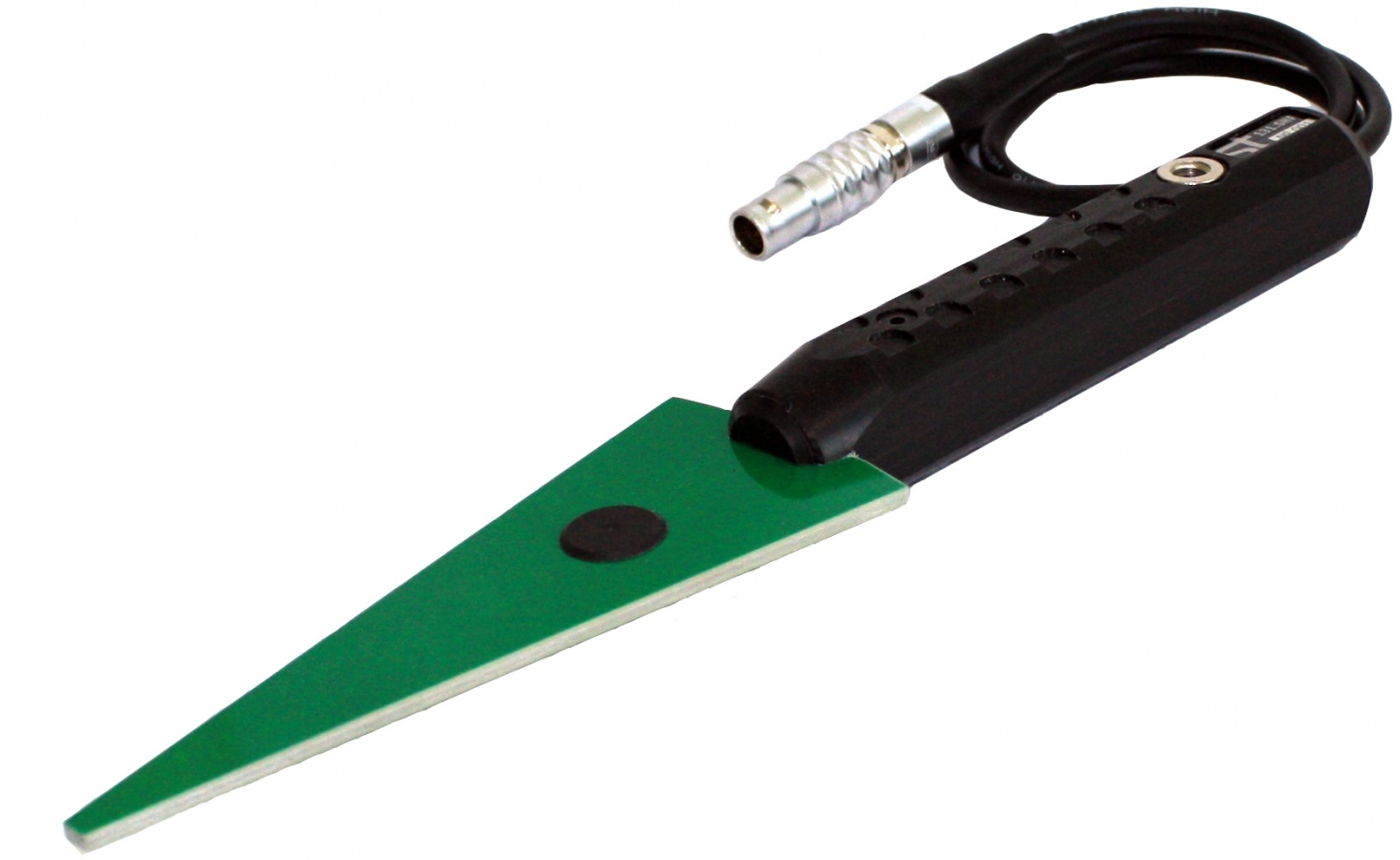

ST131.SHF consists of the structurally integrated log-periodic antenna and SHF detector-amplifier.
The handle comprises a screw-threaded hole 1/4" to connect to the tripod.

SPECIFICATIONS

Frequency range, GHz	4-18
Threshold sensitivity, dBm	-65
Directional pattern width, degree	60-90
Dynamic range, not worse, dB	30
Dimensions, mm	235X45X22
Weight, kg	0.11

ST131.SHF	1
2User Manual	1
