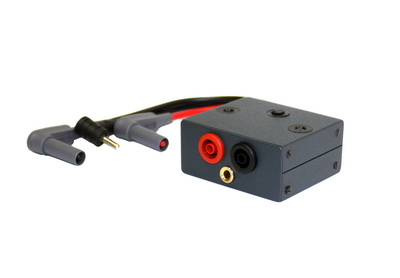

ST131.OV Biasing Module
ST131.OV Biasing Module
ST131.OV is intended to work in pair with ST131 и ST131N.
This device provides biasing voltage in wired line that is used to activate connected devices
SPECIFICATIONS | |
Maximum input voltage, V
| 250 |
Input | Symmetrical |
Input Impedance, кОм | 50 |
Biasing voltage ХХ, V
| +/-20 |
Biasing voltage with 100 Ohm Impedance, V | +/-2 |
Power supply voltage, V/td> | 15 |
Current consumption, no more than, mA | 30 |
Dimensions(no wires), mm | 60X52X27 |
| |
ST131.ОF | 1 |
Power supply | 1 |
Package | 1 |
Technical description and operating
manual | 1 |
