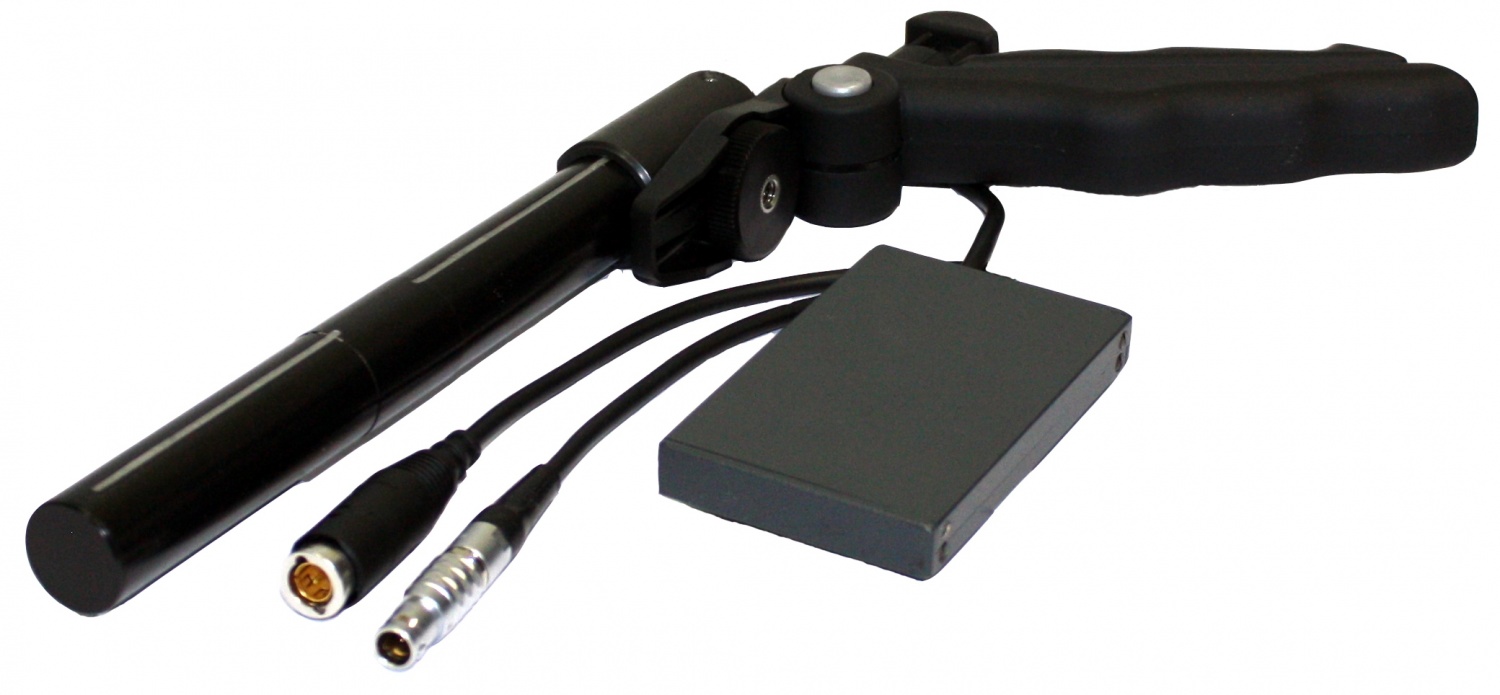

ST131.MF Magnetic Field Probe
ST131.MF Magnetic Field Probe
Magnetic Field Probe «ST131.MF» is intended for the measurement of magnetic field in the 30 - 30000MHz frequency range in pair with multifunctional detection device ST131 «PIRANHA II» or «ST131N». «ST131.MF» converts alternating magnetic field into electrical signal.
ST131.MF operates in two modes:
«MAGNETOMETER» - directly as a magnetic field intensity sensor.
«GRADIOMETER» - as a gradiometer it measures field intensity in 2 points of antenna's magnetic axis. In this mode, influence of other magnetic field sources and additional interference is much lower.
ST131.MF operates in two modes:
«MAGNETOMETER» - directly as a magnetic field intensity sensor.
«GRADIOMETER» - as a gradiometer it measures field intensity in 2 points of antenna's magnetic axis. In this mode, influence of other magnetic field sources and additional interference is much lower.
| SPECIFICATIONS | |
| Frequency range, Hz dB | 30-30000 |
| Transformation ratio (1000Hz), B*m/A | 1.00±0.01 |
| Threshold sensitivity, A/m*Hz1/2 (1000Гц), less than | 2*10-6 |
| Maximum amplitude of the output signal total distortion of less than 3%, V | 1.4 |
| Current consumption, mA | 30 |
| DELIVERY SET | |
| ST131.MF | 1 |
| Bag | 1 |
| Technical description and operating manual | 1 |
